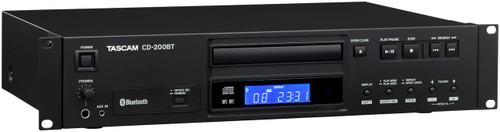

Tascam CD-200BT Bluetooth Player

Tascam CD-200BT Bluetooth Player

Write a Review
SKU:
CD-200BT
Availability:
In Stock
MSRP: $599.99
Price: $449.99
You save 25%
Free Shipping Most orders ship within 24 Hours
Question? Contact Us.

Product Description

OVERVIEW

Play High Quality Audio Sources Easily Using Bluetooth®



Wireless Playback of a Variety of Audio File Formats from Devices that Support Bluetooth®

Through the antenna located in the front of the CD-200BT, audio file playback signals can be received from a variety of Bluetooth® compatible devices. The types of files that can be played back depend on the transmitting device; so any file type that can be played back by iTunes, Windows Media Player, smartphone player apps and other music applications can be played through this unit. Bluetooth® playback uses a wireless connection, so no new wiring is necessary to use compatible audio sources as long as they are in signal-range, allowing easy and speedy playback.



Device Selection Function Allows Transmission Devices to Be Registered in Advance for Quick Switching and Operation

Bluetooth® playback requires pairing. Normally, pairing is one to one, but the CD-200BT has a device selection function that can be used to pair with multiple transmitting devices. By registering devices to be used in advance, you can switch smoothly between transmission devices for playback with minimal connection interruption time. (Only one device can be used for playback at a time)
In addition, since the name of the transmission device currently being used for audio playback can be shown on the display, you can check the connection status within this unit.

Wireless Playback with High Quality Audio

A variety of different profiles are used for Bluetooth® transmission depending on the application. The CD-200BT supports the A2DP (Advanced Audio Distribution Profile) for high audio quality music playback, and SBC (Sub Band Codec), a standard A2DP codec. In addition, it supports the aptX® codec, making high quality wireless audio playback possible. The aptX® codec also has an error recovery function, so audio is much less likely to be interrupted, compared to ordinary SBC transmission.



High-Quality CD Drive Designed and Built by TEAC

All models in the CD-200 series have the same highly-regarded and reliable TEAC designed CD drive. By undertaking development ourselves and including our drives in the player, we have achieved higher dependability, quality and reputation.

Supports for Numerous Audio Formats

The CD-200BT is perfect for any install scenario where audio format versatility is needed.

10-Second Shockproof Memory Prevents Skipping from Vibrations and Other Causes

The 10-second shockproof memory prevents skipping from vibration and other causes. Data stored in the player's memory can be played back without skipping, preventing undesired interruptions.

Features:

  • The aptX® codec supports high audio quality playback
  • Up tp eight Bluetooth® transmission devices can be paired at a time for quick and easy switching
  • The name of the transmission device currently being used for playback can be displayed
  • aptX®, AAC and SBC codecs are supported, and the codec being used can be displayed
  • SCMS-T is supported using Bluetooth® (A2DP), so audio with content protection can be received
  • Bluetooth® antenna in the front for stable Bluetooth® connections
  • High-quality CD drive designed for audio by TEAC
  • 10-second shockproof memory prevents skipping from vibrations and other causes
  • CD drive supports playback of CD-DA and WAV/MP3/MP2 files (data CD)
  • Supports CD text and ID3 tags, so text information, including artist, album and track names, can be shown
  • Four playback modes (continuous, shuffle, program and single)
  • Repeat playback function (all or single)
  • Folder repeat playback (data CD)
  • Switch between display of track elapsed time, track and disc remaining time (audio CD)
  • +/-14% pitch control function(audio CD/data CD)
  • Intro check function can be used to play the first 10 seconds of songs in order(audio CD/data CD)
  • RCA analog outputs and COAXIAL/OPTICAL digital outputs
  • Stereo mini jack input on the front for portable audio devices
  • 2U EIA rack-mount size
  • Wireless remote controller with 10-key included
  • Paring and device selection can be conducted with the included wireless remote control
  • Headphone output
  • RoHS certified

Specifications



Playback media CD,CD-R,CD-RW (8/12cm)
Playback format
CD-DA Stereo, 44.1kHz, 16bit
WAV(Data CD) Stereo, 8/16/32/11.025/22.05/44.1/12/24/48kHz, 16bit
MP2(Data CD) Stereo, 32/44.1/48kHz、32-384kbps
MP3(Data CD) Stereo, 32/44.1/48kHz、32-320kbps, VBR
Analog audio input
AUX
Connector 1/8"(3.5mm) Stereo Mini Jack
Input impedance 22k ohms
Nominal input level -20dBV
Maximum input level -4dBV
Analog audio output
UNBALANCED
Connector RCA pin-jack
Output impedance 200 ohms
Nominal output level -10dBV(0.32Vms)
Maximum output level +6dBV(2.0Vms)
Digital audio output
COAXIAL
Connector RCA pin-jack
フFormat IEC60958-3(S/PDIF)
OPTICAL
Connector TOS(JEITA RC-5720C)
Format IEC60958-3(S/PDIF)
Bluetooth®
Version 3.0
Output Class Class 2
Supported profile A2DP、AVRCP
Supported A2DP codec SBC、AAC、aptX®
Supported contents protection SCMS-T
PHONES
Connector 6.3mm(1/4") stereo phone jack
Maximum output level 20mW + 20mW (THD 0.1%, 32ohms loaded)
Power AC120V, 60Hz (North American)/AC230V, 50Hz (EUR)/AC240V, 50Hz (Australia)
Power consumption 11W
Dimensions 481(W)×94.5(H)×298(D)mm
Weight 4.5kg
Operating temperature 5-35˚C
Inclination of installation 5˚ or less
Standard accessories Wireless remote controller(RC-CD200BT), AA battery, Rack mounting screw kit, Warranty card, Owner's manual



Audio performance
Frequency response 20Hz-20kHz, +/-1dB(playback, JEITA)
Distortion 0.01% or less(playback, JEITA)
S/N ratio 90dB or greater(playback, JEITA)
Dynamic range 90dB or greater(playback, JEITA)
Channel separation 90dB or greater(playback, JEITA)
