Product Description

ZX1i-90

8-inch two-way full-range indoor/outdoor loudspeaker

Designed for top-notch quality with amazing versatility, the ZX/ZXA series sets a new standard of performance and practicality in sound reinforcement loudspeakers. Featuring high-end components and lightweight molded enclosures, the ZX/ZXA line is at home in any installed or portable application, from commercial sound to clubs, HoW, stages, arenas, and stadiums. Newly-designed highpower woofers and drivers ensure full-range sound with awesome richness and clarity. Sleek contemporary styling fits in anywhere. Light weight makes transport easy while enabling a multitude of flying and mounting options that are each supported by innovative mechanical solutions. Whether for portable use or permanent installation, the ZX/ZXA series represents the next level in advanced loudspeaker technology.

Features:

  • Indoor/outdoor design
  • Ideal for installed mains, fills, or distributed sound
  • Velocity-compensated port for exceptional LF
  • Long-excursion weather-treated EV8L woofer
  • 1.25-inch DH2005 titanium HF compression driver
  • Choice of 90º x 50º or 100º x 100º rotatable horn
  • Passive crossover with full-band overload protection
  • Also available in 70/100 volt transformer version with Electro-Voice PATENTED ASC™ Automatic Saturation Compensation
  • High sensitivity, 123 dB maximum SPL
  • Power handling: 200 W continuous, 800 W peak
  • Compact high-impact polypropylene enclosure

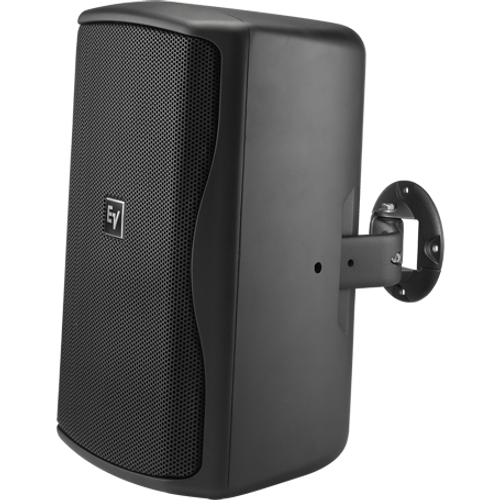

  • Integrated QuickSAM™ heavy-duty Strong-Arm Mounting bracket
  • Paintable black or white finish
  • Color Black, white
    Input Connections 4-pin Phoenix
    Nominal Impedance 8 Ω
    Speaker Type Full-range, Mid-High, Two-Way
    Frequency Response (-3 dB) 60 - 20000 Hz
    Frequency Response (-10 dB) 48 - 20000 Hz
    Internal Crossover Yes
    Recommended High-Pass Frequency 40 Hz
    Sensitivity 1 W/1 m 94 (90x50), 92 (100x100) dB
    Max. SPL/1m (calc) 123 (90x50), 121 (100x100) dB
    Coverage (Nominal -6 dB) H 90/100 ° Rotatable
    Coverage (Nominal -6 dB) V 50/100 ° Rotatable
    Rotatable Horn Yes
    System Power Handling (Continuous/Program/Peak) 200/400/800 Watts
    LF Transducer EV8L 8-inch Weatherized Cone
    HF Transducer DH2005 1-in Exit True Compression Driver
    Crossover Frequency 1700 Hz
    Minimum Impedance 6 Ω
    Enclosure Material High Impact Polystyrene
    Flying Yes
    Outdoor Yes
    Grill Polyester Powder Coated, 18GA Galvanized Steel
    Height 451 mm (17.76")
    Width 282 mm (11.1")
    Depth 263 mm (10.35")
    Weight Net 8.4 kg (18.52 lbs)
