Trusst CT290-430CIR-90

Trusst CT290-430CIR-90

Write a Review
SKU:
CT290430CIR90
Availability:
In Stock
Price: $758.94
Calculated at Checkout
Question? Contact Us.

Product Description

Product Description

TRUSST® is comprised of modular aluminum components that are manufactured from high-grade and lightweight aluminum which is easy for transportation and setup. All TRUSST® items are fabricated by SLV certified welders and made from 6082-T6 alloy aluminum.

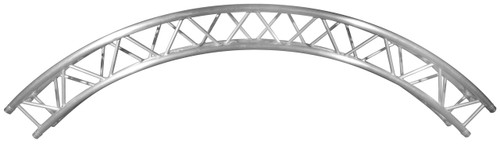

The CT290-430CIR-90 arc truss with an outside diameter of 3.0 meters (9.84ft) and a 90° arc is compatible with many TRUSST® accessories and ideal for a multitude of applications and designs when used in combination with TRUSST® Sticks, Corners, Base Plates, Accessories and Clamps.

Quick Reference Guide – Truss Arcs

CT290-430CIR-90 – CAD DWG





Features

  • Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup
  • Carefully crafted by SLV-certified welders
  • Compatible with many TRUSST® accessories to create an astonishing and custom presentation
  • Available in different sizes for mobile entertainers, productions, nightclubs and retail stores
  • Includes connecting hardware

Specifications

  • Outside diameter: 9.84 ft (3 m)
  • Inside diameter: 8.20 ft (2.5 m)
  • Arc: 90°
  • Outer diameter tube: 2 in (50 mm)
  • Diagonal bracing: 0.75 in (20 mm)
  • Wall thickness: 0.08 in (2 mm)
  • Weight: 28.6 lb (13 kg)
  • Approvals: SLV
